1+2+2 panel furniture automation connection

At the beginning of China's reform and opening up, factories were filled with various craftsmen who were able to produce countless goods solely based on their own skills, which was truly admirable.

The early development of China's furniture industry in the 20th century belonged to the embryonic stage of traditional handicrafts and equipment. At this stage, manual operation is the main method, using hand tools for production. Traditional crafts and tools such as sawing, planing, chiseling, drilling, carving, inlaying, and embedding are still in use. Mechanical equipment is mainly imported, and domestic enterprises can only produce some of the simplest equipment. Furniture processing machinery and equipment are still in their infancy.

Nowadays, labor costs in China are no longer low, and the soaring labor costs are constantly squeezing out the profits of all manufacturers. With no other choice, production can only be maintained through price increases. However, after the price increase, labor costs will also rise, thus falling into a vicious cycle.

Nowadays, God of War Intelligent Control has launched the "1+2+2 panel furniture automation cutting line" and "one mechanical gripper+two automatic labeling machines+two cutting machines" to achieve intelligent production. It uses a large number of unmanned assembly lines for production, which can improve production efficiency and effectively avoid high labor costs, which can be said to be a win-win situation.

Implementing unmanned production in separate lines

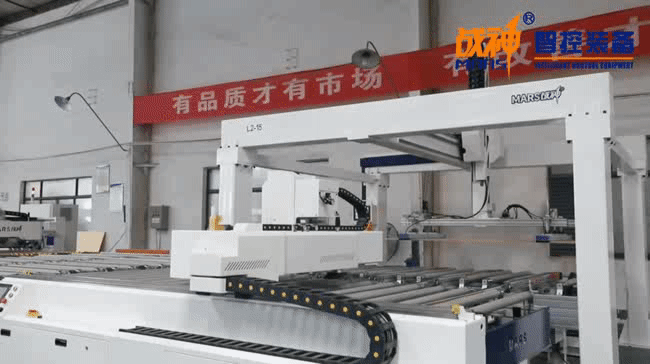

Automatic loading and

unloading of gantry grab

Automated board adsorption, PET cushion layer to protect the flat surface of the board, gantry gripper to automatically grasp the board on the roller conveyor table, built-in PET, vacuum adsorption board stacking to avoid adsorbing multiple boards.

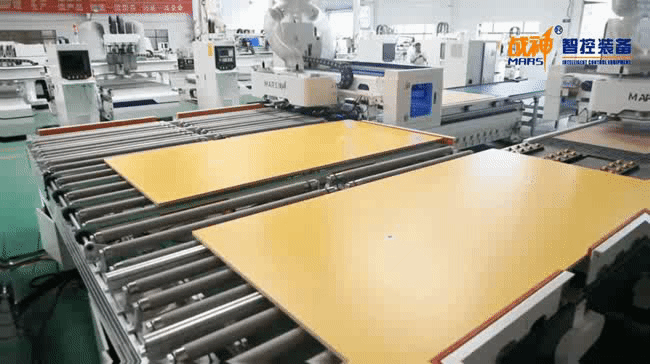

Automatic transfer plate feeding

positioning and leaning

Roller conveyor line, correcting plates, positioning and alignment, controlled by a central system. The plates enter the conveyor line and are automatically corrected, positioned and aligned. According to different colors, specifications, and thicknesses, they are allocated to the left and right work units.

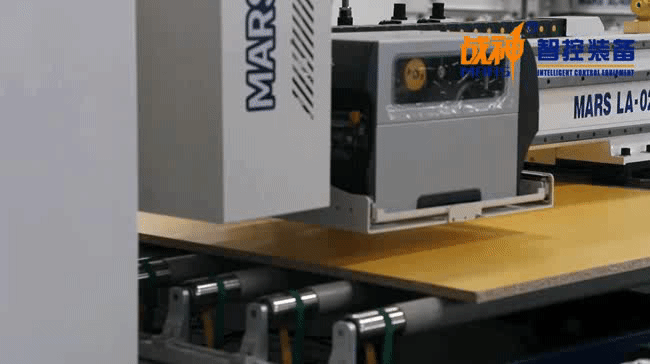

The automatic labeling

operation is uninterrupted

The labeling machine automatically adjusts the direction based on the size of the board, and the label code is visible, making it convenient for manual troubleshooting of errors and omissions; The labeling moves with the host and "one size, one object" is applied to the optimal position according to the size of the workpiece (length direction), greatly reducing the labeling time and improving efficiency.

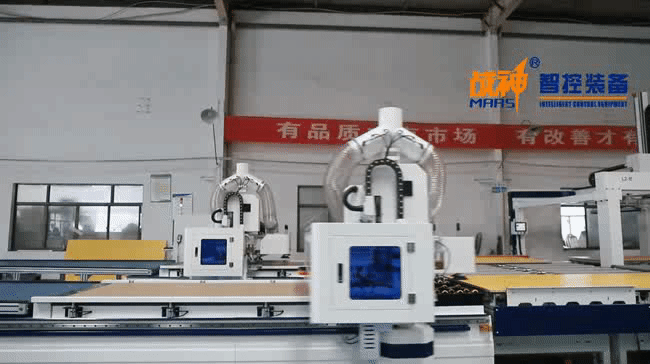

Automatic feeding without

manual intervention

The boards to be processed are fed into the corresponding board processing system. The machine control interface is designed to be user-friendly and easy to operate. After simple training, operators can start working without the need for technical workers. The machine is agile and efficient, helping you achieve a leap in production capacity.

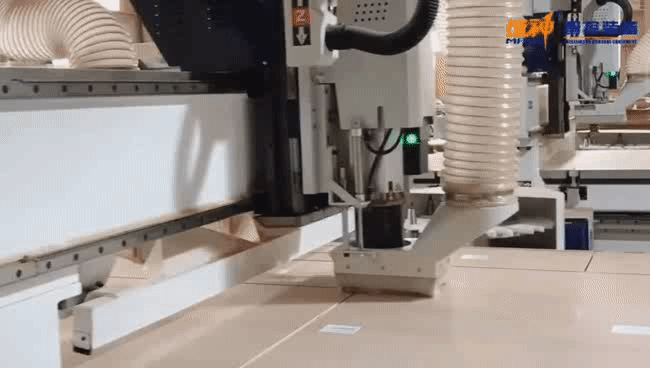

Automatic loading and

unloading of gantry grab

Call the cutting file for automatic processing without manual adjustment. Connect with the control system, and cut each large board into small boards of different sizes without manual intervention or adjustment. Intelligent production saves labor costs and ensures uninterrupted processing with high efficiency.

Automatic loading and

unloading of gantry grab

After processing is completed, the material is smoothly pushed onto the cutting platform, and the processed material is fed to the cutting platform. The workpiece automatically stops to prevent the plate from falling off. The entire production line only requires one employee to operate, with an average daily output of 800-1000 square meters.

Advantages of Applicable Scope Scheme

1: Save labor

The processing process does not require manual intervention, automatically links the processes, and the entire production line does not land without manual intervention, avoiding damage to the panels or errors caused by manual intervention.

2: Scope of application for optimizing the ratio

The matching can be selected according to the site and production capacity requirements, and the optimized ratio occupies a small area. Suitable for customizing furniture, cabinets, office furniture, and most other panel furniture manufacturers.

3: Intelligent production with high efficiency

The automatic loading, transportation, labeling, and cutting of panels are intelligent, with high processing efficiency and a daily output of 800-1000 cubic meters. Strong size applicability, with the ability to freely switch between the processing of large and small plate components
