Double sided slotting | High efficiency high-speed GN1200HD dual drill pack six sided drill

1. Intelligent CNC drilling and slotting machining center

2. Capable of horizontal and vertical drilling and slotting on various materials (particle board, medium density fiberboard, plastic box lightweight alloy)

3. The servo motion control adopts a bus system solution, which has strong flexibility and high cost-effectiveness

4. An intelligent dual fixture directly controlled by a computer locks the sheet metal, locates and clamps it according to the sequence and commands set before operation, and completes six sided drilling, slotting, and milling in one go to meet processing requirements.

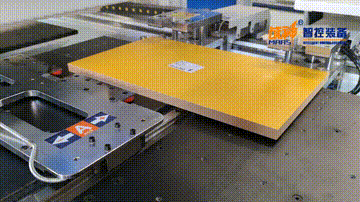

01、Minimum plate processing

Meet the processing requirements of various small plates, and the minimum processing plate size is 30mm * 120mm

02、Feeding section measuring device

Plate pre positioning, 0s waiting for material, plate size setting, plate alignment and positioning, automatic detection of plate related dimensions and reserved size to prevent manual operation errors.

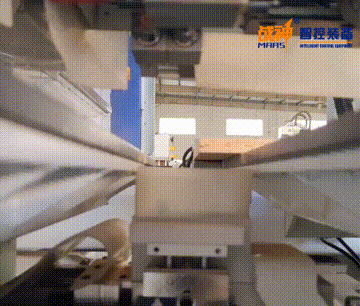

03、Double sided slotting

It is equipped with upper and lower spindles, and there is no need to turn over the front and back pull grooves one time processing.

04、The maximum speed of the gripper is 130m/min

Fast positioning to improve processing efficiency.

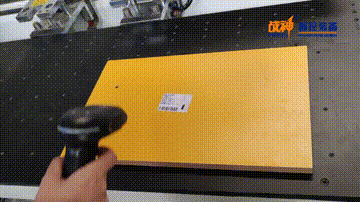

05、Scanning processing

It can be perfectly connected with the design order splitting software, and the plate processing information can be read by scanning the QR code on the plate

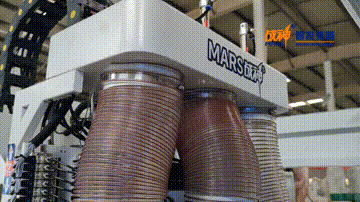

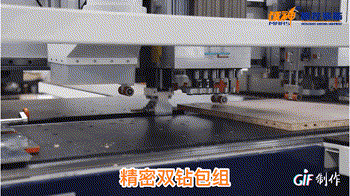

01、Precision Double Diamond Package

Symmetrical double drill bag layout, symmetrical drilling, significantly improving the efficiency

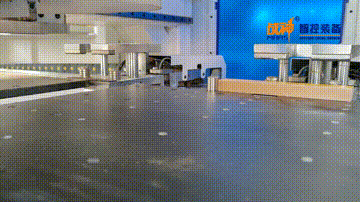

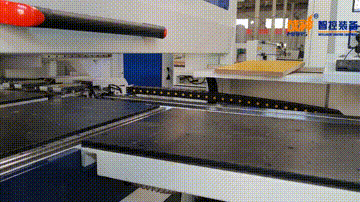

02、Air floating workbench

The air floating worktable can protect the plate surface and load materials easily

03、Intelligent operating system

Finish 6 surface machining, grooving and milling at one time. Easy to operate, flexible to use and free from manual intervention

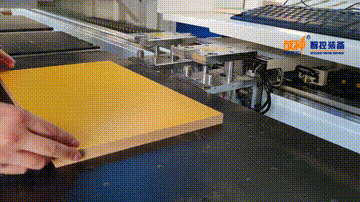

04、Double clip feeding

Double clamp feeding and multi axis linkage of drilling and milling mechanism, high speed and high efficiency.

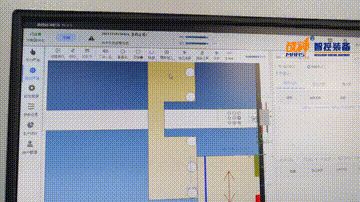

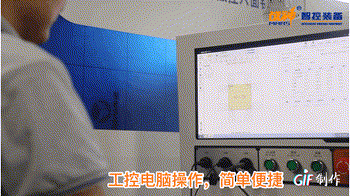

05、Can simulate actual processing

The computer operation interface can simulate the actual processing and adjust the plate size in time
