High-efficiency and intelligent, saving time and effort

The development prospects of the CNC wooden door lock hole drilling machine industry are very promising. It is highly favored by customers because it brings numerous benefits to enterprises during use. To help more people understand, let's now introduce some related basic knowledge about it.

Many people still lack basic information about CNC wooden door lock hole drilling machines. As manufacturers, we should briefly explain this. In fact, the CNC wooden door lock hole drilling machine is made by welding high-quality square steel and has undergone pressure resistance testing. It is equipped with four working motors: two on the sides, mainly for milling lock body grooves and cover plate grooves, and two in front, mainly for milling different keyhole grooves and drilling screw holes.

In essence, this equipment is a CNC fully automatic wooden door and window lock hole drilling machine with a programmable control system. Its main difference from ordinary lock hole machines is the addition of a computer control system. During processing, simply pressing the start switch allows the machine to automatically complete the entire process without needing to press any other buttons. Generally constructed by welding steel, it typically has two to four high-frequency motors. Manufacturers also incorporate adjustable cylinders, stepper motors, and servo motors in the production of CNC wooden door lock hole drilling machines, making the machine versatile and capable of efficiently completing tasks.

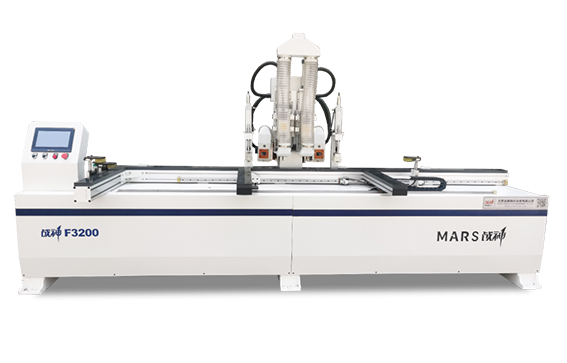

The War God MARS-F3200 wooden door lock hole machine mainly processes lock hole slots and door leaf grooves on door panels or before door panel assembly, completing the processing of wooden door lock holes, lock slots, and hinge grooves

重型基座，稳定运行

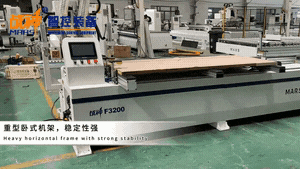

A heavy-duty frame constructed from square tubes with thick walls, precision-machined and welded together, ensuring stable and efficient operation of the machine

界面清晰，操作简单

采用高清触摸

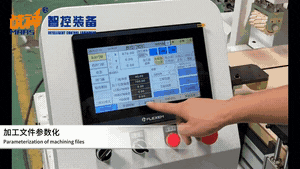

Equipped with a high-definition touchscreen, it is simple and easy to use. The processing files are parameterized, allowing direct input of parameters for processing.

。

双压轮设计

Equipped with dual pressure rollers, it effectively ensures workpiece accuracy. With automatic thickness measurement, the hole positions are more precise, suitable for processing wooden doors of different lengths.

门板自动夹紧

Mobile support bracket design with left and right clamping positioning ensures accurate door panel positioning and effectively guarantees processing accuracy.

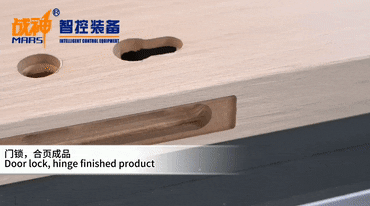

成品展示

Mobile support bracket design with left and right clamping positioning ensures accurate door panel positioning and effectively guarantees processing accuracy.
